Logical Network Diagram

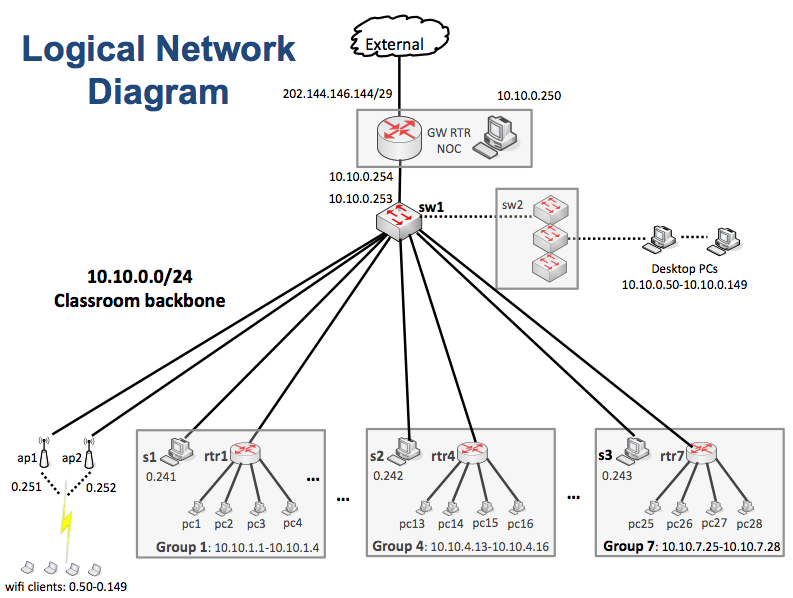

Our in-class network that will be used from Wednesday through Friday of the workshop. This is our virtual lab environment.

Click on the image for the full-size version:
