Network Diagrams and Description

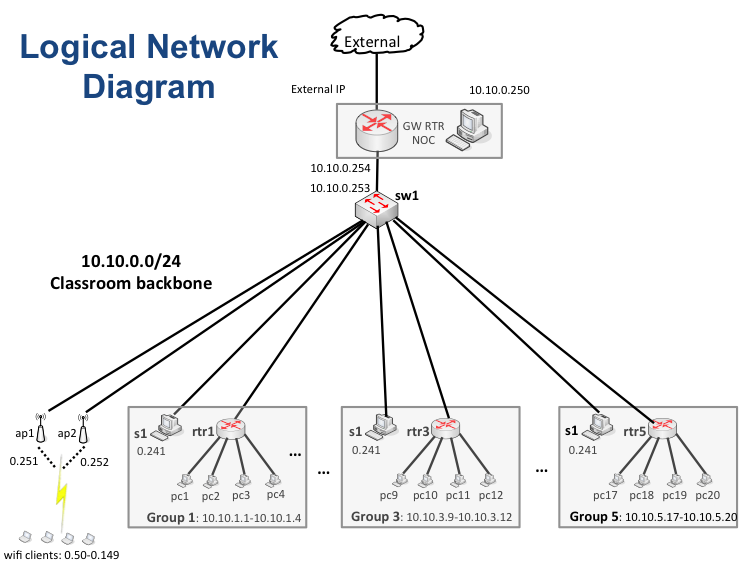

This is our classroom network diagram. The workshop is a mixture of virtual PCs and routers as well as physical equipment.


PCs Address Listing by Group

GROUP 1 GROUP 4
rtr1 ==> 10.10.1.254 rtr4 ==> 10.10.4.254
pc1 ==> 10.10.1.1 pc13 ==> 10.10.4.13
pc2 ==> 10.10.1.2 pc14 ==> 10.10.4.14
pc3 ==> 10.10.1.3 pc15 ==> 10.10.4.15
pc4 ==> 10.10.1.4 pc16 ==> 10.10.4.16
GROUP 2 GROUP 5
rtr2 ==> 10.10.2.254 rtr5 ==> 10.10.5.254
pc5 ==> 10.10.2.5 pc17 ==> 10.10.5.17
pc6 ==> 10.10.2.6 pc18 ==> 10.10.5.18
pc7 ==> 10.10.2.7 pc19 ==> 10.10.5.19
pc8 ==> 10.10.2.8 pc20 ==> 10.10.5.20
GROUP 3 GROUP 6
rtr3 ==> 10.10.3.254 rtr6 ==> 10.10.6.254
pc9 ==> 10.10.3.9 pc21 ==> 10.10.6.21
pc10 ==> 10.10.3.10 pc22 ==> 10.10.6.22
pc11 ==> 10.10.3.11 pc23 ==> 10.10.6.23
pc12 ==> 10.10.3.12 pc24 ==> 10.10.6.24

DOMAIN    = ws.nsrc.org
ADDRESSES = 10.10.0.0/24 (backbone)
            10.10.1.0/24 (group 1)
            10.10.2.0/24 (group 2)
            10.10.3.0/24 (group 3)
            10.10.4.0/24 (group 4)
            10.10.5.0/24 (group 5)
            10.10.6.0/24 (group 6)
GATEWAYS  = 10.10.0.254 (gw.ws.nsrc.org / rtr.ws.nsrc.org)
            10.10.1.254 (rtr1, group 1 gateway)
            10.10.2.254 (rtr2, group 2 gateway)
            10.10.3.254 (rtr3, group 3 gateway)
            10.10.4.254 (rtr4, group 4 gateway)
            10.10.5.254 (rtr5, group 5 gateway)
            10.10.6.254 (rtr6, group 6 gateway)

Services such as DNS, DHCP, classroom wiki, etc. run on NOC = 10.10.0.250

Nagios Parent Relationships

Parents are "gw", "sw", "rtr1", "rtr2", "rtr3", "rtr4", "rtr5" and "rtr6"

  • gw ==> sw
  • sw ==> s1, s2, s3, ap1, ap2, noc, rtr1, rtr2, rtr3, rtr4, rtr5, rtr6, rtr7, rtr8, rtr9
  • rtr1 ==> pc1, pc2, pc3, pc4
  • rtr2 ==> pc5, pc6, pc7, pc8
  • rtr3 ==> pc9, pc10, pc11, pc12
  • rtr4 ==> pc13, pc14,pc15, pc16
  • rtr5 ==> pc17, pc18, pc19, pc20
  • rtr6 ==> pc21, pc22, pc23, pc24
