Kubernetes Lab

An EKS kubernetes cluster has already been deployed in the cloud, and access permissions granted to the StudentsGroup. You are going to use kubectl to interact with the cluster.

Set up kubectl

Get a login (non-root) on your groupXY-server:

ubuntu@ip-10-30-0-74:~$

To install kubectl version 1.33.3, follow these steps:

Download kubectl

Use curl to download the specific version of kubectl from the official Kubernetes release page.

curl -LO https://dl.k8s.io/release/v1.33.3/bin/linux/amd64/kubectl

(If this fails because curl isn’t installed, then sudo apt-get install curl)

Move kubectl to a System Directory

Use sudo to copy the kubectl binary to /usr/local/bin, which is a common directory for user-installed binaries. This command also sets the owner and group of the binary to root and sets the correct permissions for execution.

sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl

Verify Installation

Check that the installation was successful by running the kubectl version command. This will show you the version of kubectl that is currently installed.

kubectl version --client

Note: The --client flag is used to show the kubectl version without requiring a connection to a Kubernetes cluster.

Configure kubectl for Amazon EKS

Use the AWS CLI to configure kubectl to connect to your Amazon EKS cluster. Replace ap-southeast-1 with the region your cluster is in. “my-eks-cluster” is the name of the EKS cluster.

aws eks --region ap-southeast-1 update-kubeconfig --name my-eks-cluster

Unfortunately, this will return an error:

An error occurred (AccessDeniedException) when calling the DescribeCluster operation:
User: arn:aws:sts::058264411872:assumed-role/group12-awscli/i-07a53a2bc30fbfbe0
is not authorized to perform: eks:DescribeCluster on resource:
arn:aws:eks:ap-southeast-1:058264411872:cluster/my-eks-cluster

That’s because your VM is running with role groupXY-awscli that you created before. That role has permissions to talk to the EC2 and S3 APIs, but not the EKS API.

Set up API permissions

In the AWS web interface, go to IAM.

In the left navigation, select “Roles”. (Open the navigation pane using the hamburger if necessary)

Click on your existing role “groupXY-awscli” (where XY is your group number). You should see it has some policies already attached. The little orange cubes mean these are AWS managed (predefined) policies.

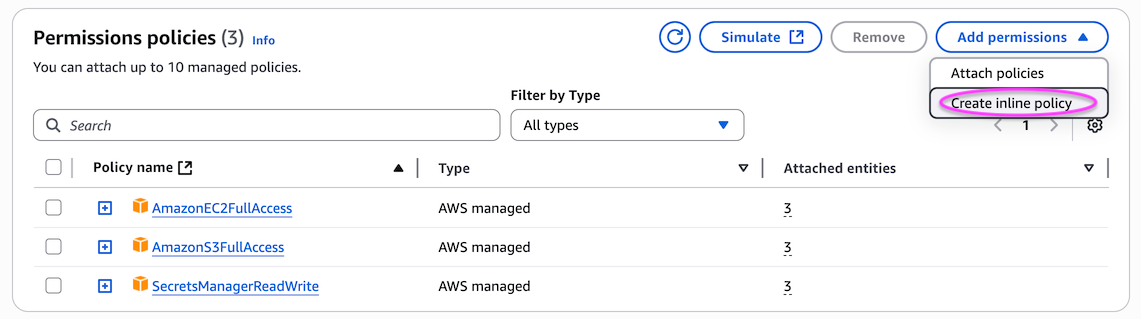

On the right hand side, click Add Permissions > Create Inline Policy.

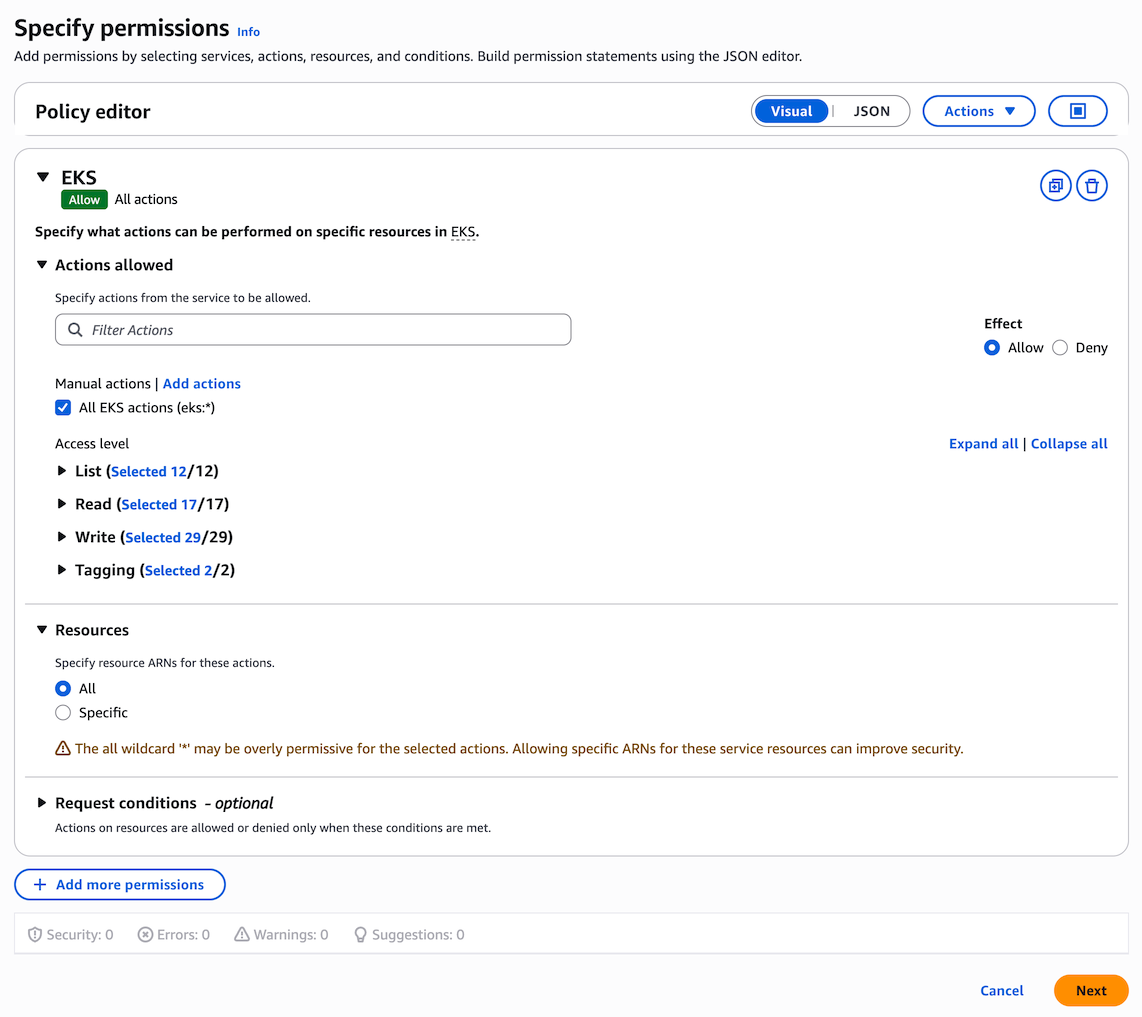

In the policy editor:

Select a service: enter “EKS” and select “EKS” from the drop-down
Check All EKS actions (eks:*)
Resources: select “All”

At the top, where it says Visual | JSON, click on JSON. This shows you the internal form:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": "eks:*",
            "Resource": "*"
        }
    ]
}

Now click Next.

For Policy name enter “groupXY-eks” (changing XY to your group number), then click Create Policy. You should find that your new policy is now included in your permissions.

Return to your VM, and repeat the command:

aws eks --region ap-southeast-1 update-kubeconfig --name my-eks-cluster

You should get a response similar to this:

Updated context arn:aws:eks:ap-southeast-1:058264411872:cluster/my-eks-cluster in /home/ubuntu/.kube/config

A kubectl config file has been written to the appropriate location, with credentials (a certificate) to talk to the Kubernetes API.

Test the configuration

Now send a request to the Kubernetes API:

kubectl get nodes

Unfortunately, this is still rejected:

error: You must be logged in to the server (Unauthorized)

At this point, although you’re able to connect to the API, your user still doesn’t have any authorization at the Kubernetes level to do any actions.

Set up Kubernetes permissions

Now you have to go to an area of the web interface you haven’t used before.

In the search box at the very top of the AWS web interface, enter “EKS” and jump to “Elastic Kubernetes Service”

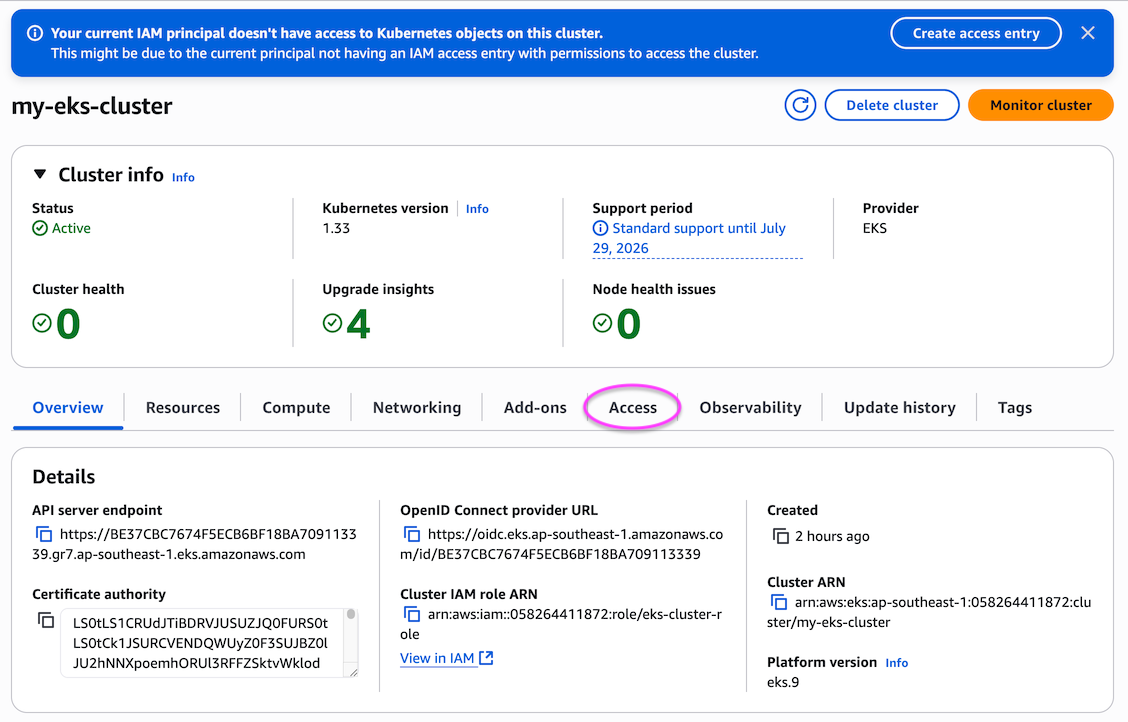

You should get a list of clusters (with one cluster). Click on “my-eks-cluster”. You should get a busy page of information. Click on the “Access” tab in the middle, highlighted here:

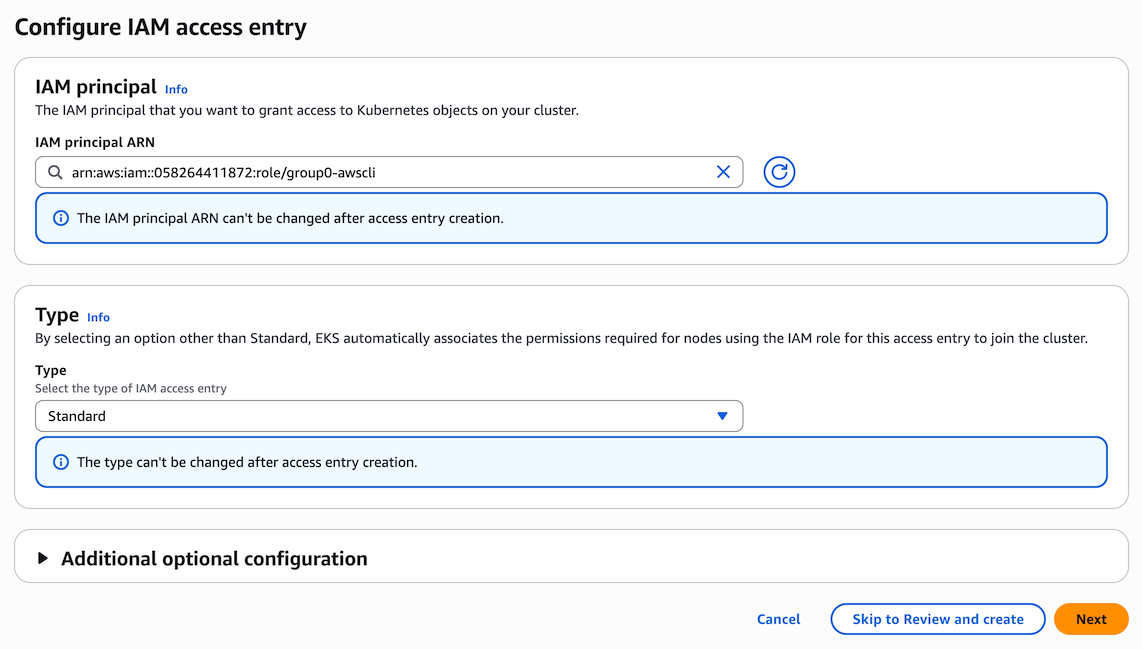

The next page has a section headed “IAM access entries”. Click on “Create access entry”.

IAM principle ARN: select your group’s admin role (groupXY-awscli)
Type: Standard

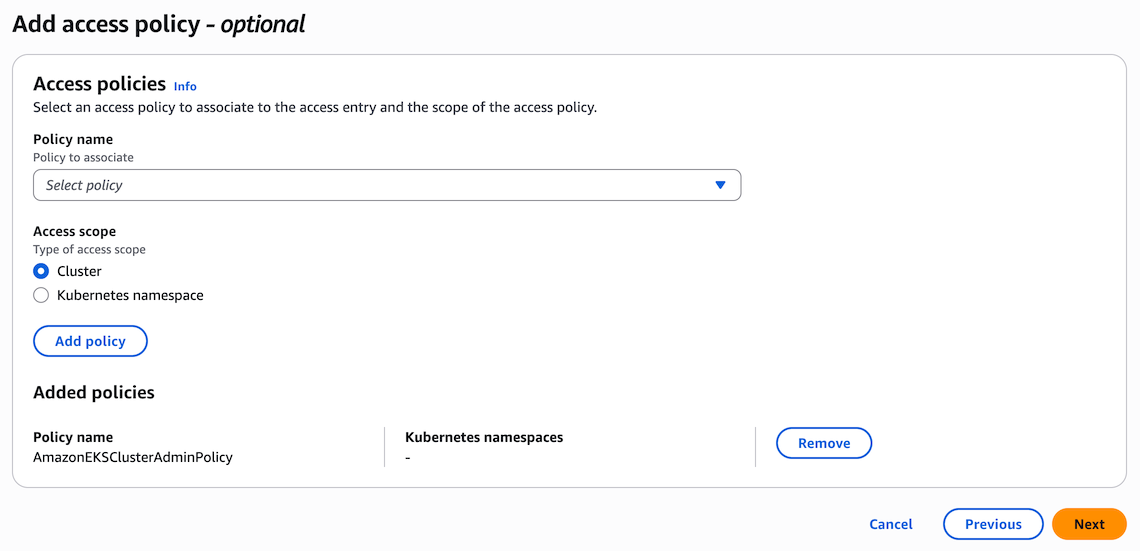

On the next page:

Policy: select AmazonEKSClusterAdminPolicy
Access scope: Cluster
Click “Add policy”

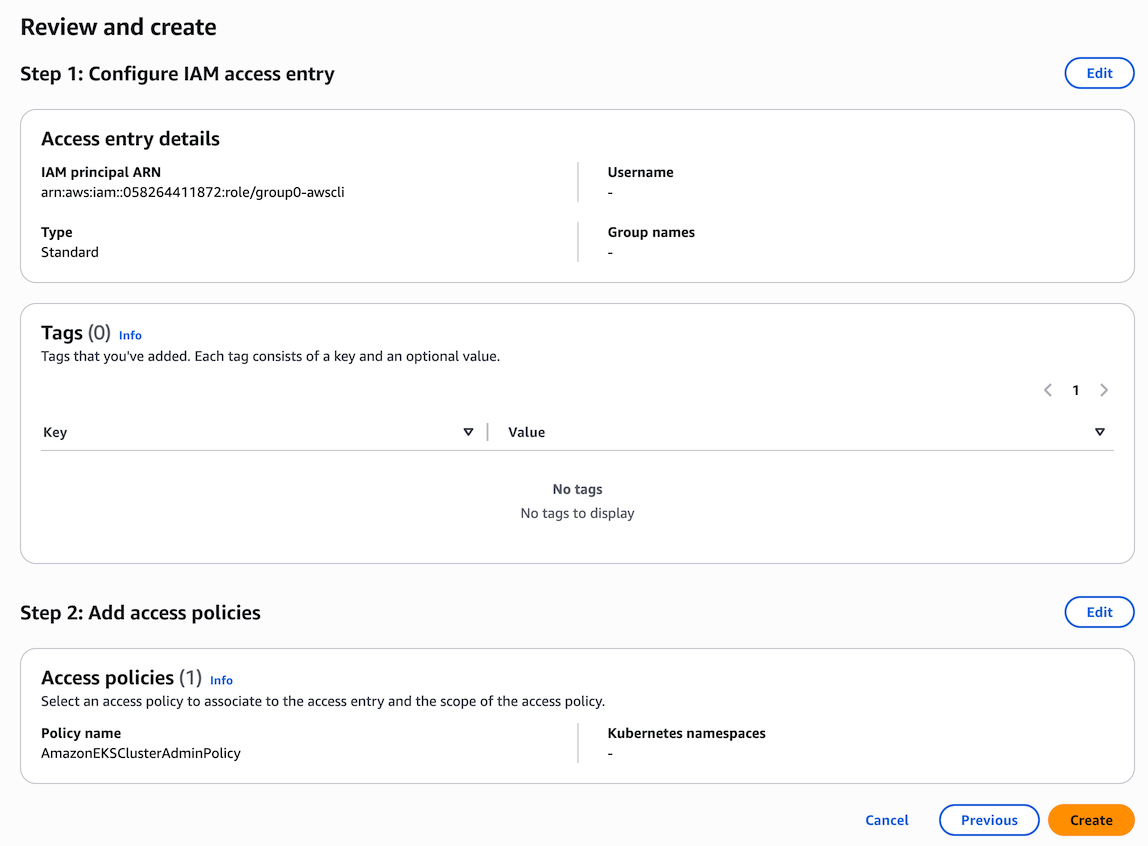

Click “Next” to get a summary:

Click “Create”

Test the configuration again

Try the command at the CLI again. The command below should output the nodes along with their statuses, roles, ages, and versions:

kubectl get nodes

Expected Output:

NAME                         STATUS   ROLES    AGE   VERSION
ip-10-0-1-95.ec2.internal    Ready    <none>   42h   v1.33.2-eks-5e0fdde
ip-10-0-2-213.ec2.internal   Ready    <none>   42h   v1.33.2-eks-5e0fdde
...etc

This output indicates that kubectl is correctly configured to communicate with your EKS cluster and that your nodes are ready and operational.

Exercise: Deploy a Pod in Kubernetes with a Secret

Objective

Learn how to create and use a Kubernetes secret to store and access sensitive information. Deploy a new pod with a Kubernetes secret inside

Set Up Your Environment

Ensure your Kubernetes cluster is running and accessible.
In previous labs you were assigned group number. Add your group number to the resource manifests where you see groupXY below
Open a AWS Instance Connect and use it to complete the lab

Create a Secret Manually

Create a password and base64 encode it. Take note of the output of the command

echo -n 'choose a good password and put it here' | base64

If the command is successful, the output of the command above should look similar to this:

Y2hvb3NlIGEgZ29vZCBwYXNzd29yZCBhbmQgcHV0IGl0IGhlcmU=

Using a text editor, create a file called “secret.yaml” containing the text below.

Make sure to put your group number where it says groupXY

YAML is sensitive to indentation, ensure that you are preserving the indentation when you copy and pased the text below.

apiVersion: v1
kind: Secret
metadata:
  name: my-secret-groupXY
type: Opaque
data:
  password: your base64 encoded secret

Apply the secret using kubectl

kubectl apply -f secret.yaml

If the command is successful you should see output like this:

secret/my-secret-groupXY created

Verify the Secret

Check if the secret was created successfully.

kubectl get secrets

View detailed information about the secret.

kubectl get secret my-secret-groupXY -o yaml

Use the Secret in a Pod

Create a Pod that uses the secret. Save the following YAML to pod-using-secret.yaml.

apiVersion: v1
kind: Pod
metadata:
  name: secret-test-pod-groupXY
spec:
  containers:
  - name: test-container
    image: nginx
    env:
      - name: SECRET_PASSWORD
        valueFrom:
          secretKeyRef:
            name: my-secret-groupXY
            key: password
  restartPolicy: Never

Apply the YAML to create the Pod.

kubectl apply -f pod-using-secret.yaml

If the command is successful you should see the output like this:

pod/secret-test-pod-groupXY created

Now check to make sure the container has been scheduled and is running

kubectl get pods

If the container is running, you should see output like this:

secret-test-pod-groupXY                      1/1     Running   0          8s

Verify Secret Usage

Exec into the pod and verify the environment variable.

kubectl exec -it secret-test-pod-groupXY -- /bin/bash
echo $SECRET_PASSWORD  # This should print the password you created

If you see the password you entered, then everything has succeeded.

Exit the interactive session with the following command:

exit

Delete the pod

Using Kubectl, delete the pod you just created

kubectl delete pod secret-test-pod-groupXY

If you see the output pod "secret-test-pod-groupXY" deleted, the delete has succeeded.

Delete the secret

Similarly, delete the secret

kubectl delete secret my-secret-groupXY

Exercise: Deploy and Manage a Deployment in Kubernetes Across Different Nodes

Objective

Learn to deploy an application in Kubernetes with a Deployment that ensures Pods are scheduled on different nodes. This exercise will highlight Kubernetes’ scheduling capabilities, demonstrate the cluster’s self-healing mechanism, and teach you how to manage application deployment and removal effectively.

Set Up Your Environment

Confirm your Kubernetes cluster is operational and accessible.
Remember your group number from previous activities. Replace groupXY in the provided resource manifests with your specific group number.
Utilize AWS Instance Connect to facilitate interaction with your cluster for this lab.

Create a Secret

Generate a Kubernetes Secret to securely store sensitive information, to be utilized by your Deployment. This time we’ll use a shorter version of the command, that does the base64-encoding for you:

kubectl create secret generic my-secret-groupXY --from-literal=password='YourSecretPassword'

If your command is successful, a secret named my-secret-groupXY is now securely stored in your Kubernetes cluster.

Deploy an Application Using a Deployment

Prepare a YAML configuration file named nginx-deployment-groupXY.yaml for your deployment. Ensure to replace groupXY with your group number. This deployment is configured to spread pods across different nodes.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment-groupXY
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-groupXY
  template:
    metadata:
      labels:
        app: nginx-groupXY
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: "app"
                    operator: In
                    values:
                    - nginx-groupXY
              topologyKey: "kubernetes.io/hostname"
      containers:
      - name: nginx-container
        image: nginx
        env:
          - name: SECRET_PASSWORD
            valueFrom:
              secretKeyRef:
                name: my-secret-groupXY
                key: password

Deploy the application:

kubectl apply -f nginx-deployment-groupXY.yaml

If your command is successful, the deployment nginx-deployment-groupXY will initiate with 2 replicas, utilizing pod anti-affinity to ensure distribution across different nodes for enhanced fault tolerance and availability.

Verify Pods Are Scheduled on Different Nodes

Confirm that your Pods are deployed across different nodes by inspecting the node assignment:

kubectl get pods -o wide -l app=nginx-groupXY

If your command is successful, the NODE column in the output will show different node names for each Pod, indicating that the Pods are running on separate nodes as intended.

Simulate Pod Failure

Manually delete one Pod to observe the Kubernetes self-healing process:

kubectl delete pod <name of the pod>

(The name will be something very long like nginx-deployment-groupXY-6fd6bd8c9c-jh4gj - use copy and paste!)

Check to see if your pod has been rescheduled. If it was rescheduled you will see a pod with an age around 5s

kubectl get pods

If your command is successful, Kubernetes’ Deployment controller will automatically create a new Pod to replace the deleted one, ensuring the desired state of your deployment is maintained without manual intervention.

Delete the Deployment

Remove the Deployment to clean up resources:

kubectl delete deployment nginx-deployment-groupXY

If your command is successful, the Deployment and its associated Pods will be deleted from your cluster, showcasing Kubernetes’ ability to manage application lifecycles efficiently.
