Introduction

The purpose of this exercise is to introduce participants to the basic configuration requirements of a Cisco router.

The network topology is designed to be modular to allow the lab to grow as needed depending on the number of participants. Each module in this lab contains 1 ISP and 3 customer networks (universities, etc). Modules will be interconnected.



Topology of Module 1

Module one is made up of three Groups (1,2,3), and their ISP. As we go through the workshop, we will add an NREN to this Module as well.



Topology of Module 2

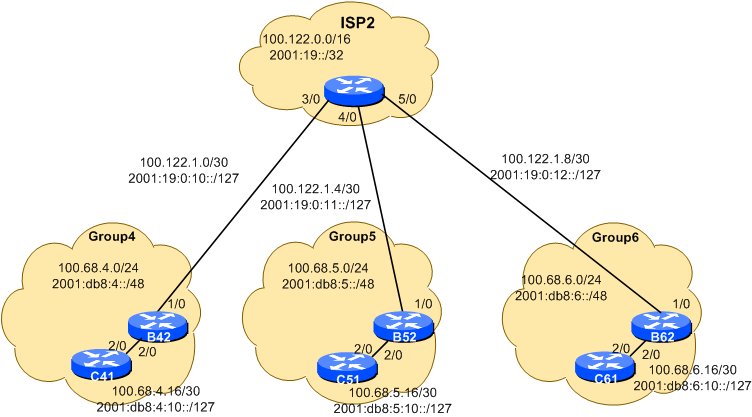

Module two is made up of three Groups (4,5,6), and their ISP. As we go through the workshop, we will add an NREN to this Module as well.



Topology of the whole Lab

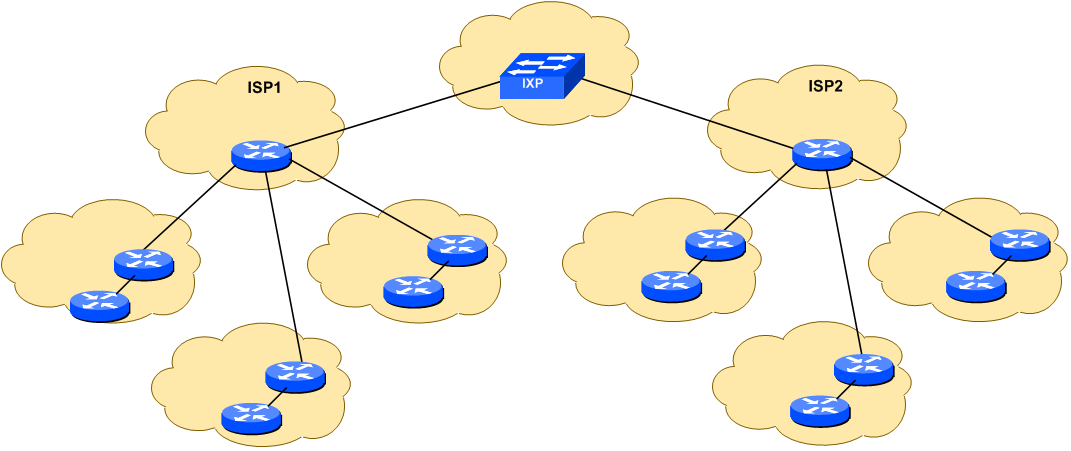

The entire workshop lab is interconnected as in the following diagram - the two ISPs interconnect via an Internet Exchange Point.



Logistics

Each participant will be assigned to a network. Depending on the number of participants, either a single person or a group will be responsible for the configuration of a router. You may be asked to rotate and work on a different router so that you have the opportunity to understand the network from another point of view.

As you go through the exercises, you will see examples of configurations for one or more routers. Make sure to take those examples and adapt them to your own router, network topology and addressing scheme. Use the diagrams to guide you.

Lab Access

Refer to the Lab Access Instructions document for information about logging into the routers that have been assigned to you.

Address Space Allocation

Refer to the IP Address Plan document for information about the IP address plan for the network infrastructure for these labs.



Router Configuration

The following configuration examples show the suggested/recommended configuration to be implemented on the routers in each group. Replace the R in the examples with the router type (either B for Border or C for Core), and replace the X with your group number as appropriate.

Name the router

Router> enable
Router# config terminal
Router(config)# hostname RX1

Configure Authentication

aaa new-model
aaa authentication login default local
aaa authentication enable default enable
username nrenlab secret lab-PW
enable secret lab-EN
service password-encryption
line vty 0 4
 transport preferred none
line console 0
 transport preferred none

Configure logging

no logging console
logging buffered 8192 debugging

Disable DNS resolution

no ip domain-lookup

Activate IPv6 routing

Turn on IPv6 Routing and activate IPv6 CEF (not on by default in Cisco IOS)

ipv6 unicast-routing
ipv6 cef

Disable source routing for IPv4 and IPv6

no ip source-route
no ipv6 source-route

Path MTU Discovery

Enable Path MTU Discovery on the router - this is not enabled by default for connections to the control plane (but it is enabled by default now for BGP).

ip tcp path-mtu-discovery

Exit configuration mode and save

end
write memory

Interface Configuration

Configure your interfaces according to the diagram

Notice that for the links to the ISP we will use the ISP's addresses, while for internal links we use internal addresses.

On CX1:

interface GigabitEthernet2/0
 description P2P Link to BX2
 ip address 100.68.X.17 255.255.255.252
 no ip directed-broadcast
 no ip redirects
 no ip proxy-arp
 ipv6 address 2001:db8:X:10::0/127
 ipv6 nd prefix default no-advertise
 ipv6 nd ra suppress all
 no shutdown
!

On BX2:

interface GigabitEthernet2/0
 description P2P Link to CX1
 ip address 100.68.X.18 255.255.255.252
 no ip directed-broadcast
 no ip redirects
 no ip proxy-arp
 ipv6 address 2001:db8:X:10::1/127
 ipv6 nd prefix default no-advertise
 ipv6 nd ra suppress all
 no shutdown
!

And the link to the ISP needs to be configured also, for example:

On B12:

interface GigabitEthernet1/0
 description P2P Link to ISP1
 ip address 100.121.1.2 255.255.255.252
 no ip directed-broadcast
 no ip redirects
 no ip proxy-arp
 ipv6 address 2001:18:0:10::1/127
 ipv6 nd prefix default no-advertise
 ipv6 nd ra suppress all
 no shutdown
!

Explanations for some of the commands used

no ip directed-broadcast

An IP directed broadcast is an IP packet whose destination address is a valid broadcast address for some IP subnet, but which originates from a node that is not itself part of that destination subnet.

Because directed broadcasts, and particularly Internet Control Message Protocol (ICMP) directed broadcasts, have been abused by malicious persons, we recommend disabling the ip directed-broadcast command on any intereface where directed broadcasts are not needed (probably all).

no ip proxy-arp

Proxy ARP is the technique in which one host, usually a router, answers ARP requests intended for another machine. By "faking" its identity, the router accepts responsibility for routing packets to the "real" destination. Proxy ARP can help machines on a subnet reach remote subnets without the need to configure routing or a default gateway.

Disadvantages of proxy arp:

no ip redirects

ICMP redirects can be sent to a host when the router knows that another router in the same subnet has a better path to a destination. If a hacker installs a router in the network that causes the legitimate router to learn these ilegitimate paths, the hacker's router will end up diverting legitimate traffic thanks to ICMP redirects. Thus, we recommend that you disable this feature in all your interfaces.

ipv6 nd ra suppress all

IPv6 router advertisements are sent periodically by routers to inform hosts that the router is present, and to allow hosts to autoconfigure themselves using stateless autoconfiguration mechanisms. This is not necessary on point-to-point interfaces or any backbone infrastructure as there are no end user devices connecting to these links.

ipv6 nd prefix default no-advertise

This prevents the router from sending any prefixes as part of router advertisements, so the client will not auto-configure itself with a global IPv6 address. This is helpful for IOS versions where you cannot suppress solicited RA messages.

Connectivity Testing

Do some PING tests

R12# ping 100.68.1.17        <- C11
R12# ping 2001:db8:1:10::0   <- C11
R12# ping 100.121.1.1        <- ISP1
R12# ping 2001:18:0:10::0    <- ISP1

and then verify the output of the following commands:

show arp             : Show ARP cache
show interface       : Show interface state and config
show ip interface    : Show interface IP state and config
show ipv6 neighbors  : Show IPv6 neighbours
show ipv6 interface  : Show interface state and config
show cdp neighbors   : Show neighbours seen via CDP

Try and ping the other groups (remember to replace X with your own group number):

What happens ? Why ?

Try and look at the routing table, and the forwarding table

show ip route
show ipv6 route

To view the forwarding table:

show ip cef
show ipv6 cef

Can you find route entries for the other groups, and for the ISP network, in the route table ?

... In the forwarding table ?

What do you need to do to be able to reach those groups (and the ISPs) ?

What do those groups need to do to be able to reach your group ?

Creating Static Routes

On your routers CX1 and BX2, you will need to create static routes for:

What will those routes point to (next hop) on BX2 ?

What will those routes point to (next hop) on CX1 ?

Remember the syntax for adding routes is:

ip route SUBNET MASK NEXT-HOP

For example on B12, to reach Group 2:

B12(config)# ip route 100.68.2.0 255.255.255.0 100.121.1.1
B12(config)# ipv6 route 2001:db8:2::/48 2001:18:0:10::0

Based on the information above, create the required routes to be able to reach all the other groups, interconnection links, and the ISP address space.

Save Configuration

Verify and save the configuration.

show running-config write memory



Appendices

Appendix A - ISP1 Sample Configuration

Below is a sample configuration for ISP1. ISP2's configuration will be very similar. The teams operating ISP1 and ISP2 should build their configurations based on the sample below.

Note that both ISP routers are connected to the workshop backbone. ISP1 uses the 10.10.0.235/24 address, and ISP2 uses the 10.10.0.236/24 address.

hostname ISP1
aaa new-model
aaa authentication login default local
aaa authentication enable default enable
username nrenlab secret nsrc-PW
enable secret nsrc-EN
service password-encryption
line vty 0 4
 transport preferred none
line console 0
 transport preferred none
no logging console
logging buffered 8192 debugging
no ip domain-lookup
ipv6 unicast-routing
ipv6 cef
no ip source-route
no ipv6 source-route
!
interface Loopback0
 ip address 100.121.0.1 255.255.255.255
 ipv6 address 2001:18::1/128
!
interface FastEthernet0/0
 description Workshop Backbone
 ip address 10.10.0.235 255.255.255.0
 no ip directed-broadcast
 no ip redirects
 no ip proxy-arp
 no shutdown
!
interface GigabitEthernet1/0
 description Link to IXP
 ip address 100.127.1.1 255.255.255.0
 no ip directed-broadcast
 no ip redirects
 no ip proxy-arp
 ipv6 address 2001:DB8:FFFF:1::1/64
 ipv6 nd prefix default no-advertise
 ipv6 nd ra suppress all
 no shutdown
!
! Link to Group 1 (repeat for Groups 2 and 3 on GigE4/0 and 5/0)
interface GigabitEthernet3/0
 description P2P Link to B12
 ip address 100.121.1.1 255.255.255.252
 no ip directed-broadcast
 no ip redirects
 no ip proxy-arp
 ipv6 address 2001:18:0:10::/127
 ipv6 nd prefix default no-advertise
 ipv6 nd ra suppress all
 no shutdown
!
! Routes to Group 1 (repeat for groups 2 and 3)
ip route 100.68.1.0 255.255.255.0 100.121.1.2
ipv6 route 2001:db8:1::/48 2001:18:0:10::1
!
! Routes to Group 4 (repeat for groups 5 and 6)
ip route 100.68.4.0 255.255.255.0 100.127.1.2
ipv6 route 2001:db8:4::/48 2001:DB8:FFFF:1::2
!
! Routes to ISP2 address space
ip route 100.122.0.0 255.255.0.0 100.127.1.2
ipv6 route 2001:19::/32 2001:DB8:FFFF:1::2
!
! Pull-up routes for address blocks of ISP1
ip route 100.121.0.0 255.255.0.0 null0
ipv6 route 2001:18::/32 null0
!
